Features of the backpressure regulator

• Pilot Control Tube (PCT)
  One of the features enabling highly accurate control of inlet pressure
• Balanced Seat Design (BSD)
  An inlet pressure balanced main valve ensures precision and high reliability
• Rapid and accurate monitoring of inlet pressure provides process reliability

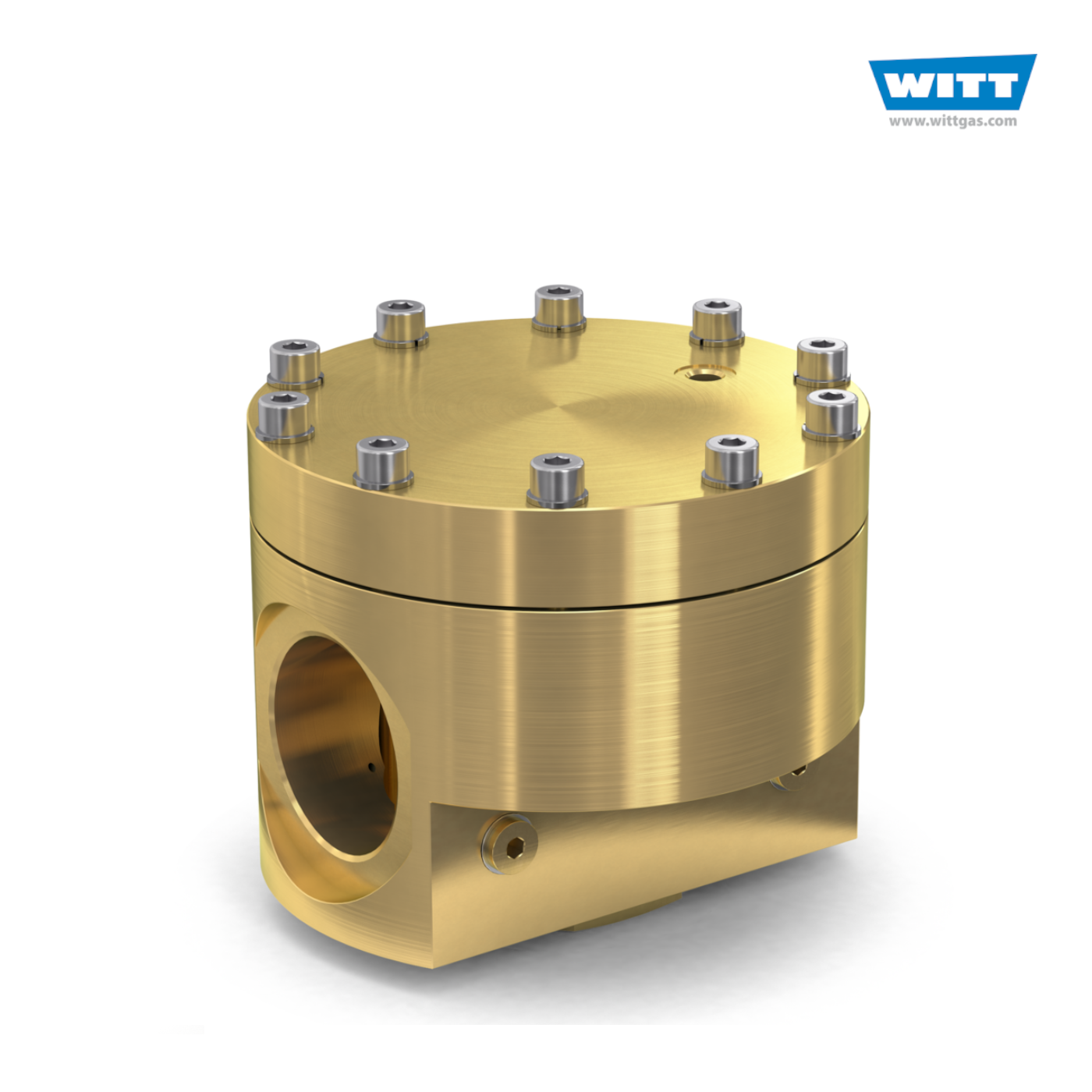

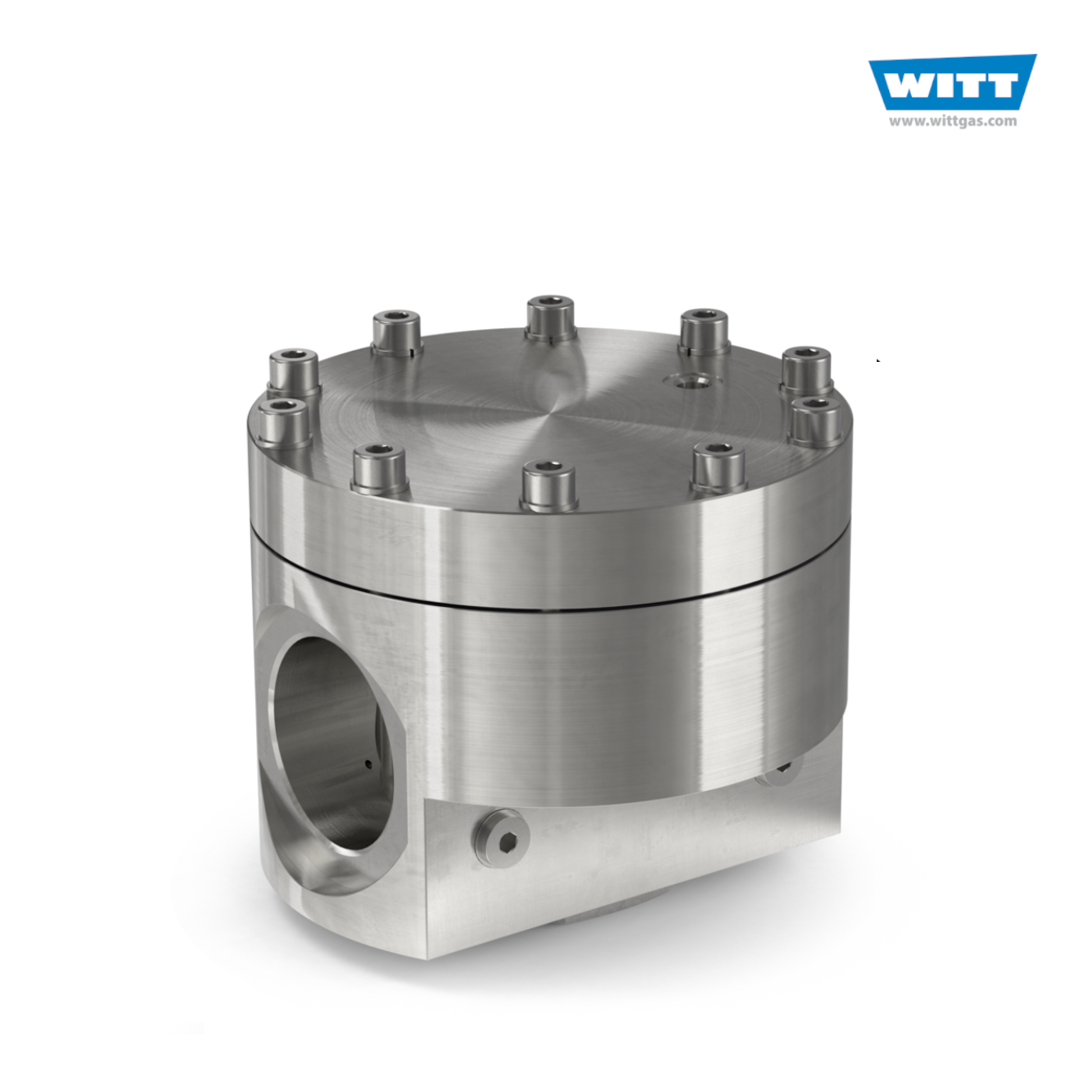

• Available in brass or stainless steel (ES)
• Integrated connections for pilot gas and pressure gauges
• Inlet pressure regulation by external pilot pressure or proportional valve
• Simple to install and operate
• Removable spindle enables the simple setting of the required outlet pressure
• Can be positioned at any angle/orientation
• For indoor and outdoor installation.

Operation / Usage
Ideal for process gas supply where constant backpressure is required. For example pressure regulation from gas cushions in tanks

Maintenance
Annual testing of body leak tightness is recommended depending on the application.

Approvals

• Company certified according to ISO 9001, ISO 22000 and PED 2014/68/EU Module H
• CE-marked according to PED 2014/68/EU
• ATEX 2014/34/EU with ignition hazard analysis according to EN 1127-1, DIN EN 13463-1 and ZH1/200
• Analysed for Food Safety per HACCP-Analysis
• Fulfils the requirements of EU Regulations (EC) 1935/2004, and (EC) 2023/2006
• Fulfils the requirements of German Food and Feed (LFGB) Law, and is suitable for contact with food gases

Available upon request

• Certificates and test reports
• Switchover systems / parallel supply systems
• Customer-specific / customised versions
