Description

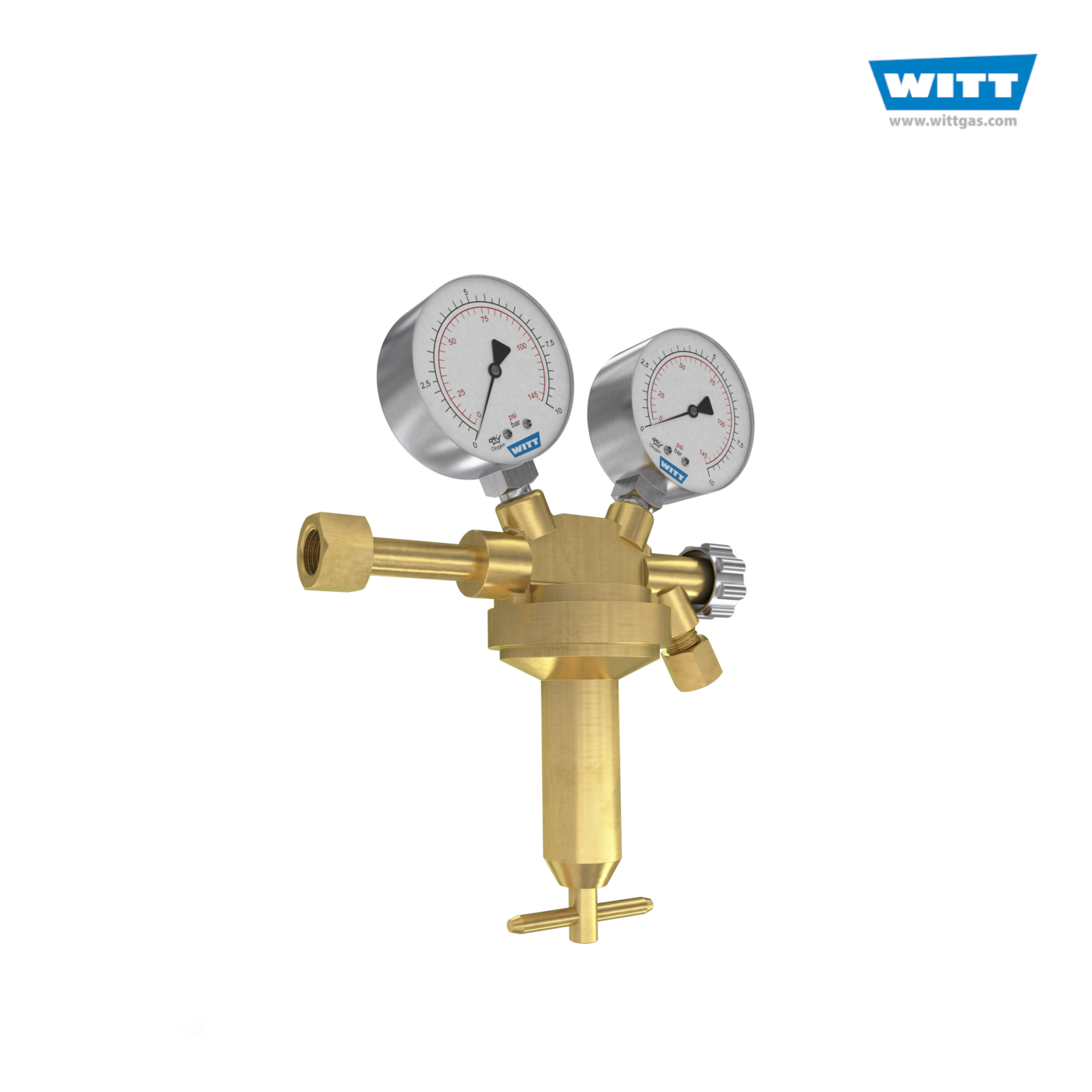

WITT single-level pressure regulators for cylinders are available in different versions:
- for acetylene, Pv max = 25 barg, Ph = 0-1.5 barg, yoke connector- G 3/8 LH AGS (EN 560), manometers for inlet and outlet pressure
- for oxygen, Pv max = 200 barg, Ph = 0-10 barg, G 3/4 MG (DIN477) – G 1/4 AGS (EN 560), manometers for inlet and outlet pressure
- for argon and carbon dioxide, Pv max = 200 barg, Q = 30 l/min, W 21.80 x 1/14 (DIN 477) – G 1/4 AGS (EN 560), inlet pressure manometer and manometer readings l/min
