WITT Pressure regulating station 1×1 or manually changeable 2×1 for central gas supplies. Every pressure regulating station 100% tested.

Benefits:

• pressure regulating station completely mounted and tested
• quick and easy wall mounting
• compact design (e.g. suitable for cylinder cabinets)
• pressure regulating station according to DIN EN ISO 14114
• pressure regulator according to DIN EN ISO 7291

Operation / Usage:

• The pressure regulating station ensures continuous gas supply and control of a pipeline, which is connected with pipeline outlets and reduces the risk of accidents
• A supply by single cylinders is not available

Assembly:

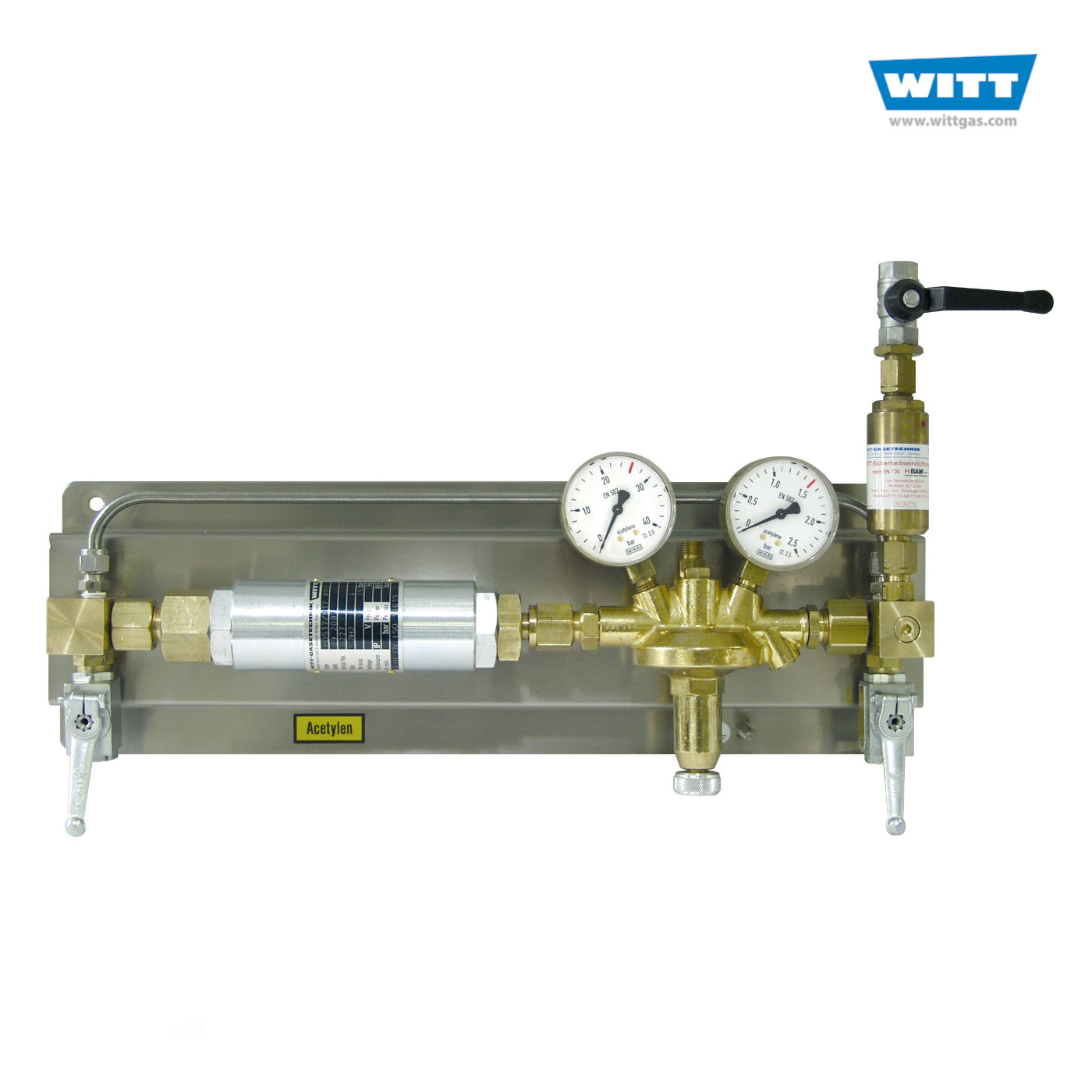

• (1×1) pressure regulating station 684NG
• (2×1) pressure regulating station 684NG manually changeable

consisting of:
2/2-way-high pressure ball valve DN6 1x or 2x dependant on the option
1x pressure regulator with blow-off valve
1x safety device 85-10 according to DIN EN ISO 5175 against backflow and flashback
1x ball valve in the outlet DN8; G 3/8 F

• completely mounted and tested on stainless steel plate

Options:

• automatic quick-acting shut-off device HDS17 according to EN ISO 15615
• flexible hose standards (BAM certified) for connection of pressure regulating station with gas supply (cylinder, gas cylinder manifolds, bundles, …), adapter suitable for bundle connection
• screw connection for pipe (soldering end, WITTFIX, welding end)
• extension module for connection of further single cylinder or cylinder bundles with pressure regulating station
• information board with concise instructions
• instruction plate according to the gas

Approvals
Company certified to ISO 9001
