WITT Pressure regulating station 1×1 or manually changeable 2×1 for central gas supplies. Every pressure regulating station 100% tested.

Benefits:

• pressure regulating station completely mounted and tested
• quick and easy wall mounting
• compact design (e.g. suitable for cylinder cabinets)
• pressure regulator according to DIN EN ISO 7291

Operation / Usage:

The pressure regulating station automatically ensures continuous gas supply and control of a pipeline, which is connected with pipeline outlets and reduces the risk of accidents. Supplying from single cylinders is no longer necessary.

Assembly:

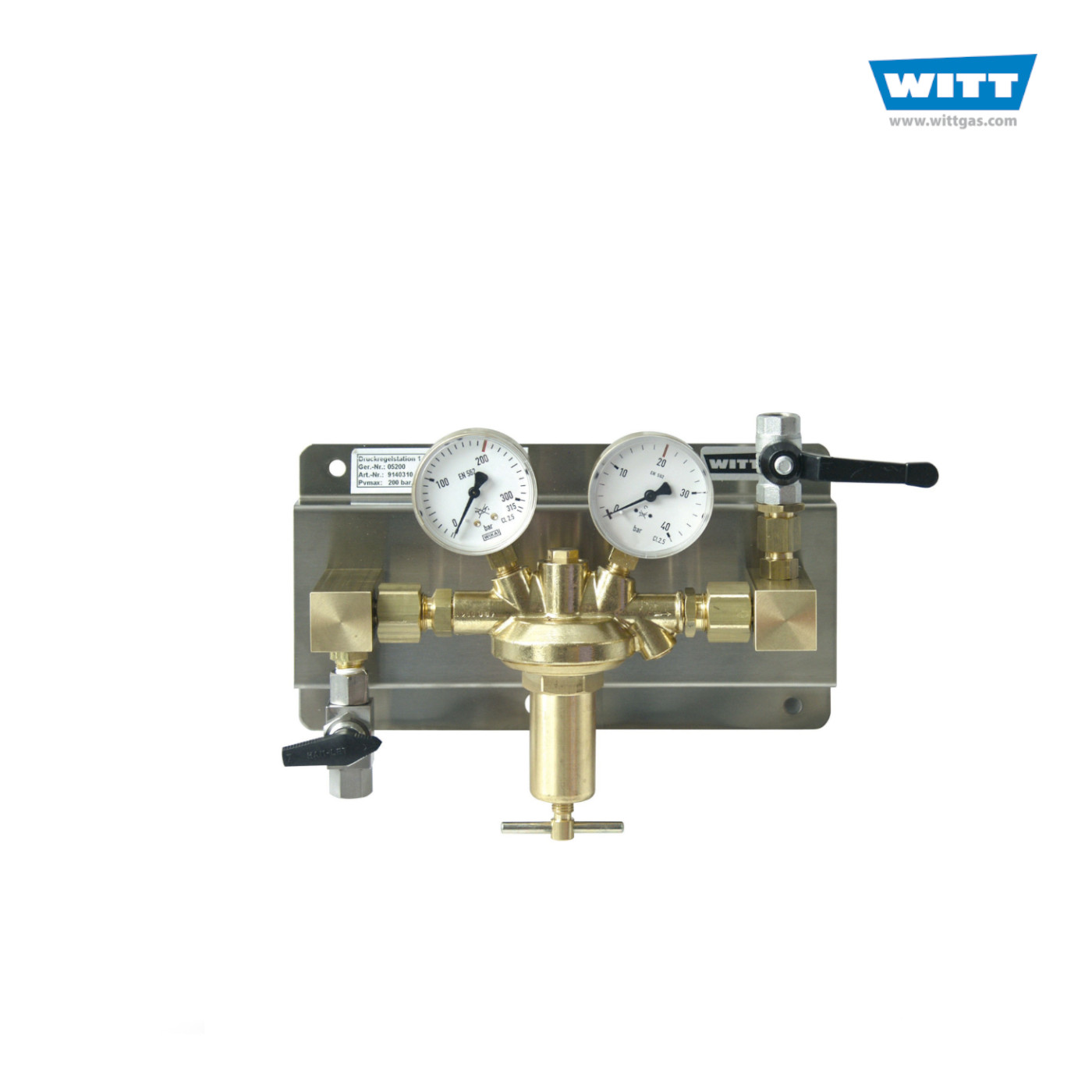

• 1×1 pressure regulating station 684NG

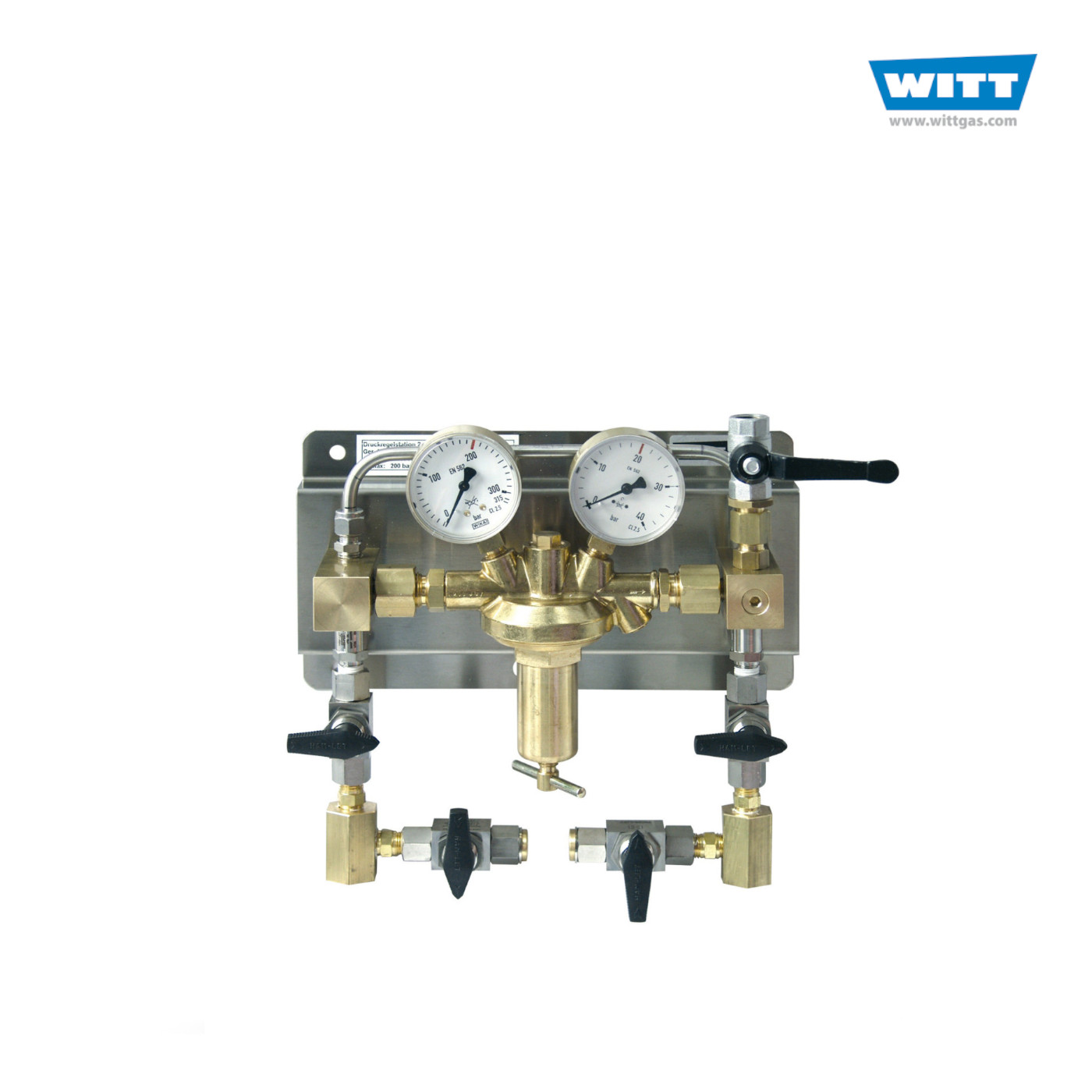

• 2×1 pressure regulating stations 684NG manually changeable

consisting of:
high pressure ball valve DN6 dependant on option (1x or 2x)
1x pressure regulator with blow off valve
1x ball valve in the outlet DN8; G 3/8 F

• complete mounted and tested on stainless steel plate

Options:

• flush valve
• flexible hose standards for connection of pressure regulating station with gas supply (cylinder, gas cylinder, manifolds, bundles, …), adapter suitable for bundle connections
• screw connection for pipe (soldering end, WITTFIX, welding end)
• extension module for connection of further single cylinder or cylinder bundles with pressure regulating station
• safety device 85-10 according to DIN EN ISO 5175 against reverse gas flow and flashbacks
• information board with concise instructions
• instruction plate according to the gas

Approvals
Company certified to ISO 9001

Please identify the individual gas at the time of enquiring!
