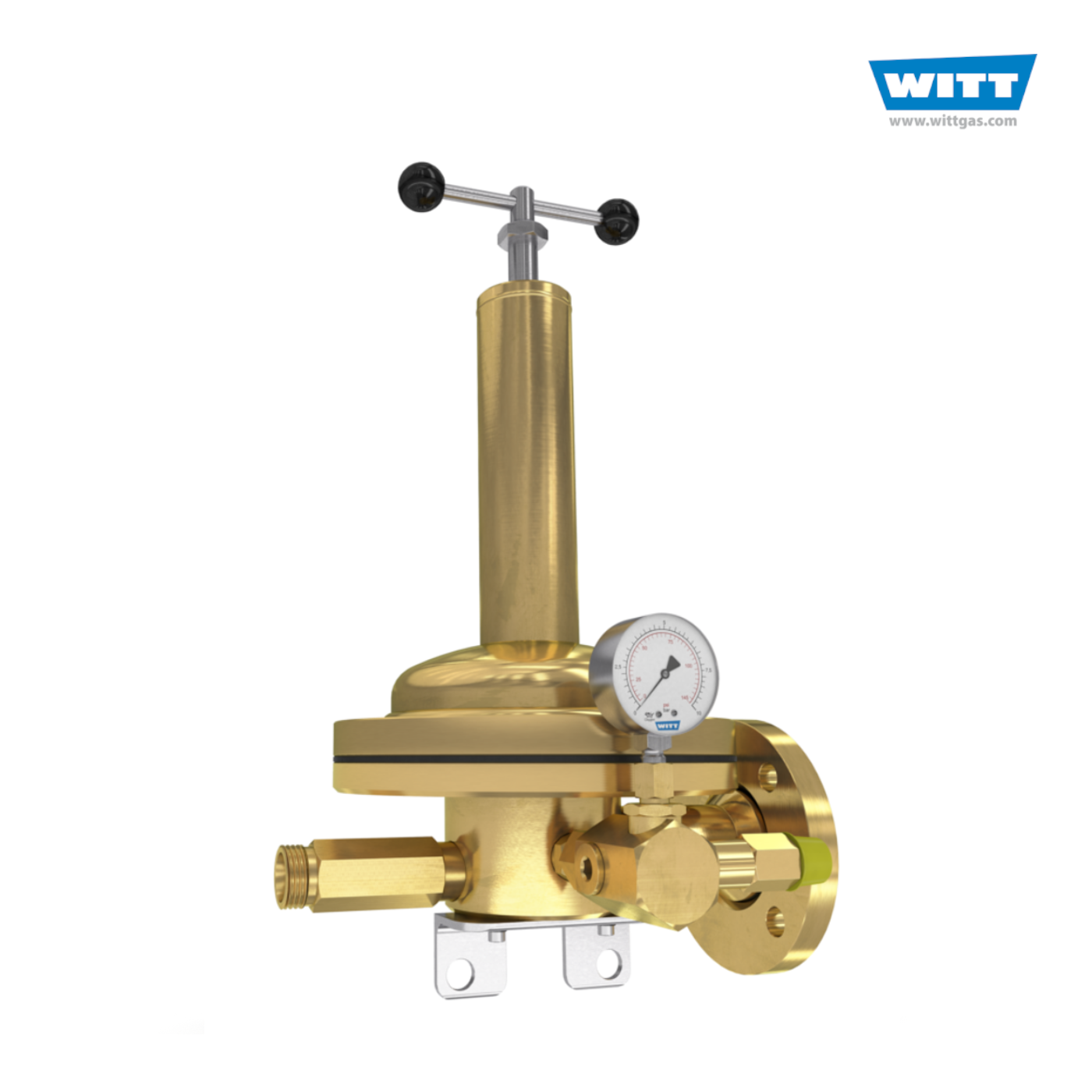

Powerful manifold pressure regulator to regulate high flows at acetylene cylinder manifolds or bundles (packs).

Benefits:

• integrated relief valve (according to ISO 7291)
• 150 m3/h flow capacity
• integrated relief valve and outlet pressure gauge
• requires no additional pilot gas

Operation / Usage:
The ADR 150F for acetylene is used to reduce high pressure on working pressure in acetylene supplies as required according to EN 14114.

Function:
The ADR 150F is a spring-loaded pressure regulator. The required pipeline pressure is adjusted by the spindle.

Maintenance:
It is recommended that a leak check concerning the atmosphere is conducted at regular intervals. Repairs are only to be carried out by the manufacturer.

Approvals:
Company certified according to ISO 9001 and PED 97/23/EC Module H
CE-marked according to PED 97/23/EC, category III, Safety accessories
