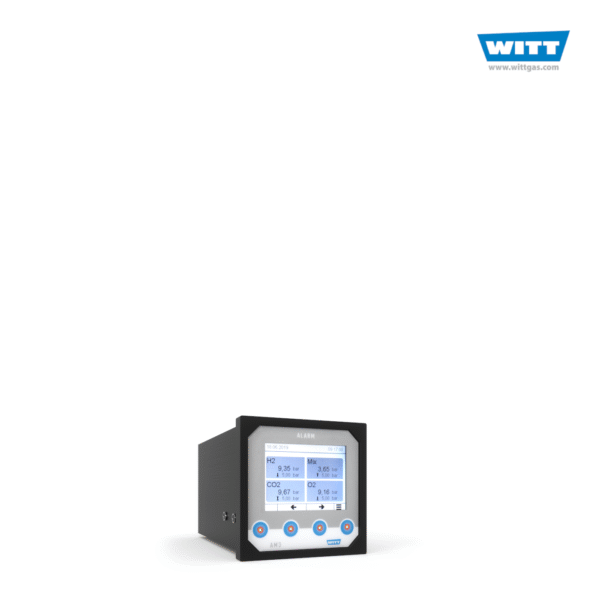

AM3 Multi-Controller

Displaying values, data logging, process controlling

Features:

  • processes 4-20 mA signals, 5 input and 5 output signals
  • suitable for a variety of signal sources, e.g. pressure transmitters, temperature or level sensors
  • manages up to 8 alarms
  • integrated event-logger
  • also for use as a device for monitoring external control systems
  • comfortable, easy-to-read touch display
  • clear, intuitive menu structure

Product of WITT



The new AM3 multi-controller can display values, monitor processes, log data and control systems. This versatile instrument processes 4-20 mA signals from a wide variety of signal sources, e.g. pressure transmitters, temperature or level sensors, and can simultaneously monitor various systems.

Benefits

  • ideal for front panel mounting due to its small size
  • analog inputs and outputs enable communication with external systems
  • integrated event-logger
  • built-in alarm functions
    - manage up to eight alarms
    - acknowledged directly via the touch display
  • also for use as a device for monitoring external control systems
  • easy-to-read TFT display, which activates automatically when approached
  • device parameters (e.g. alarm limit values) can be easily set using capacitive keys
  • graphic menu navigation is clear and intuitive
  • data transfer via USB type B port
  • different international units (Bar, PSI, kPa and till 10 Bar in mBar possible) can be selected

Options

  • data cable
  • software GAS CONTROL CENTER for analysis of data (see separate datasheet)

Other models, options and accessories available upon request.
