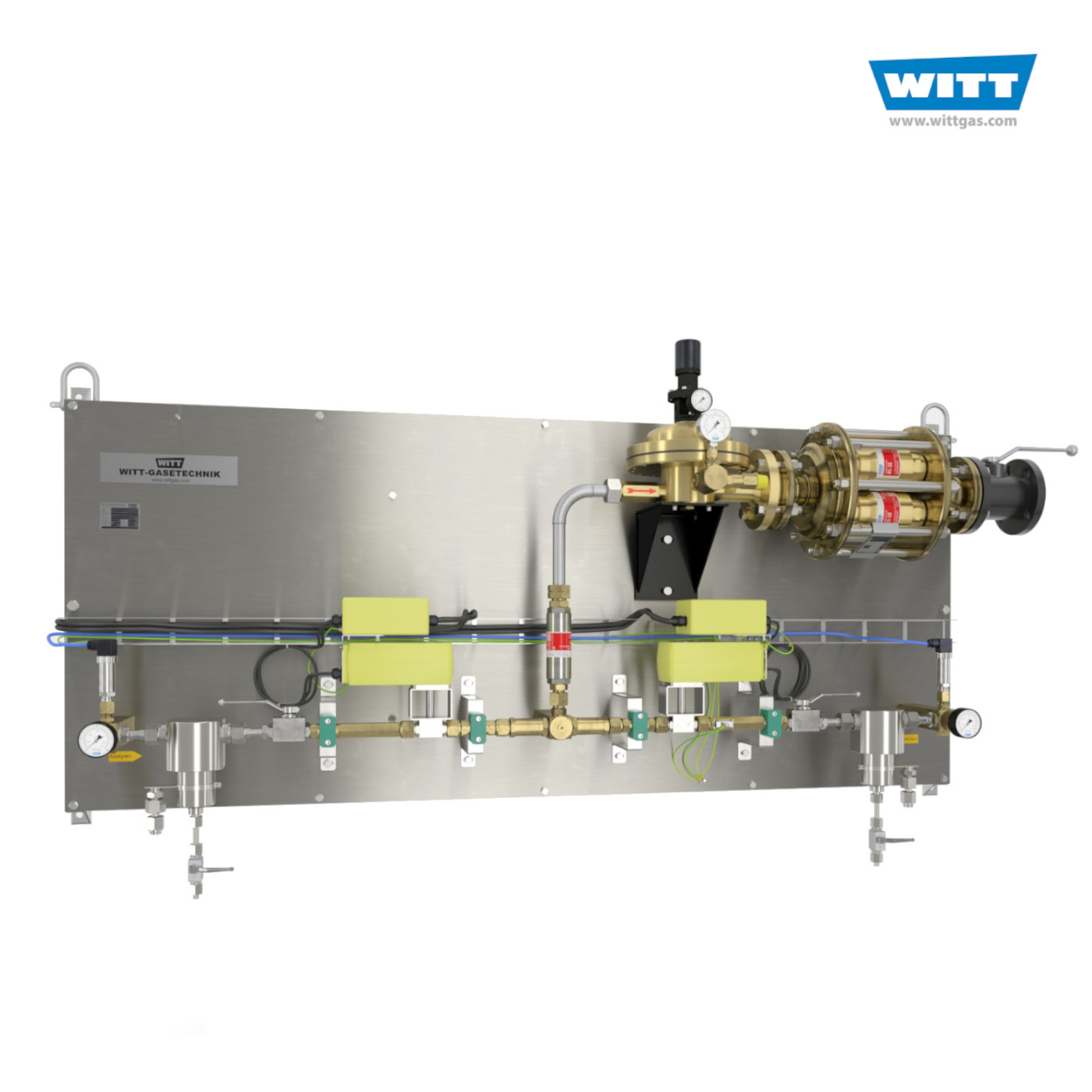

WITT Pressure regulating station with full automatic changeover for central gas supplies.
Every pressure regulating station 100% tested.

Benefits:

• powerful manifold pressure regulating station 150NA to regulate high flows up to 150 m3/h
• extremely stable outlet pressure, independent of inlet pressure and flow rate
• fully automatic changeover between 2 gas sources (bundles or trailers)
• electronic WITT-SWITCH-TRONIC with graphical filling level indicator
• intelligent software and extremely low pressure drop (Δp) provide optimal draining of the manifold or bundles
• electronic pressure transmitter for filling level control
• warning if bundle/trailer is empty
• connections for external devices
• motor-controlled ball valves (230 V) for smooth changeover without pressure peaks
• emergency shutdown
• manual emergency mode possible
• includes WITT safety elements: decomposition arrestor HDS17, safety group 645 with four WITT flashback
• arrestor (Model 85-30), non-return valves
• robust design
• according to DIN EN ISO 14114, TRAC, PED, Atex Zone 2

Assembly:

• 2×1 pressure regulating station 150NA fully automated changeovers

consisting of:
2x electronic pressure transmitters + inlet gauges
2x 2/2-way-high pressure ball valves
2x motor-controlled ball valves 230 V
1x automatic quick acting shut-off device HDS17 according to EN ISO 15615
2x HD-non-return valves
1x pressure regulator ADR 150 with blow off valve
1x safety group 645 with safety device 85-30 (with 4x parallel)
1x ball valve in outlet

• completely mounted and tested on stainless steel plate
• for connection with WITT-SWITCH-TRONIC

Options:

• flexible hose standards (BAM certified) for connection of pressure regulating station with gas supply, adapter suitable for bundle connection
• contact pressure gauge
• pressure regulator ADR 150F with blow off valve
• acetone separator
• manifold for connection of cylinder bundles with pressure regulating station

Approvals
Company certified to ISO 9001
