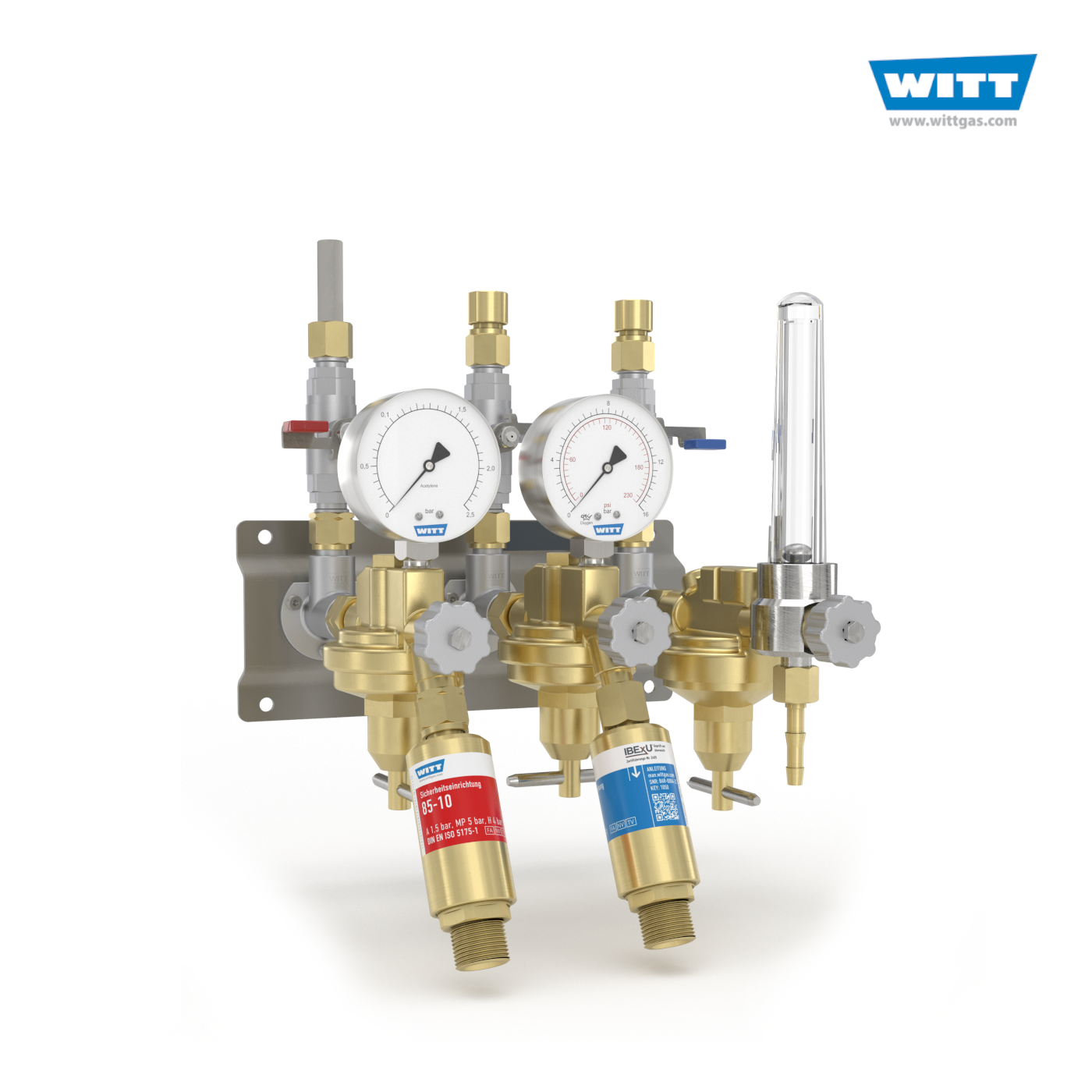

Outlet points easy to use for withdrawal of technical gases. To mount on the wall for connection with a central gas supply system (ring line). The compact design is modularly expansible and offers a variety of possible combinations.

Benefits:

• the combination of gas paths and design features is customizable
• inlet with fittings (soldering end and/or welding socket) and outlet with nozzle or male thread (option hose coupling)
• ball valves in inlets signals clearly position OPEN / CLOSED respectively gas flow/gas stop
• quick and easy wall mounting
• compact design
• completely mounted and tested
• up to max. 3 gas paths see top figure
• stainless steel plate, for use of acetylene, fuel gas, oxygen and shielding gas

Options:

• pressure regulator with a pressure gauge or flow meter
• model with safety devices, according to DIN EN ISO 5175-1 against dangerous reverse gas flow and flashbacks
• hose coupling SK100 according to DIN EN 561 / ISO 7289
• WITTFIX-Pipe Couplers

Operation / Usage:
Outlet points are connected to the central gas supply system by ring or stub lines and adjusted to the required local flow and specific operating pressures.

Indication:
610-1 for one gas path
610-2 for two gas paths
610-3 for tree gas paths

Approvals
Company certified to ISO 9001
Cleaned for Oxygen Service according to EIGA IGC Doc 13/12/E: Oxygen Pipeline and Piping Systems

Other models, options and accessories available on request.

Please identify the individual gases at the time of enquiring!
