Ambient Air Monitoring System RLA compact

Ambient Air Monitoring System RLA compact

Ambient air monitoring for the detection of combustible and toxic gases or oxygen (O2), 1 to 4 transmitters

Features:

  • connection of up to 4 transmitters for different gases
  • with digital display and LEDs
  • 6 internal relays, 4 of them freely programmable
  • alarm light and horn

Product of WITT

Download Datasheet

Loading...

Description

Ambient Air Monitoring System for the detection of combustible and toxic gases or oxygen (O2)

Benefits:

  • connection of up to 4 transmitters for different gases
  • easy programming of the measurement range, the measurement designation, the type of transmitter and the type of gas can be set individually as well as three alarm thresholds
  • 6 internal relays, 4 of them freely programmable

     – allocation of one or more measurement points to relay
– single alarm per measurement point
– single alarm per alarm threshold
– configuration of collective alarm and group alarm
– error report and voting function

  • large illuminated graphic display with traffic light function for continuous visual monitoring of the gas concentration
  • with integrated alarm transmitter (signal light and -audible alarm)
  • easy wall mounting
  • Transmitters:

     – with status and function display
– long lifetime of sensors
– setting without opening of housing via keystroke
– on site alarm by integrated horn (optionally)

Options:

  • 2GB micro SD memory card for saving measurement values, averages, alarm events and errors in individual intervals
  • flow-through adapter for sensor check and calibration

Components:

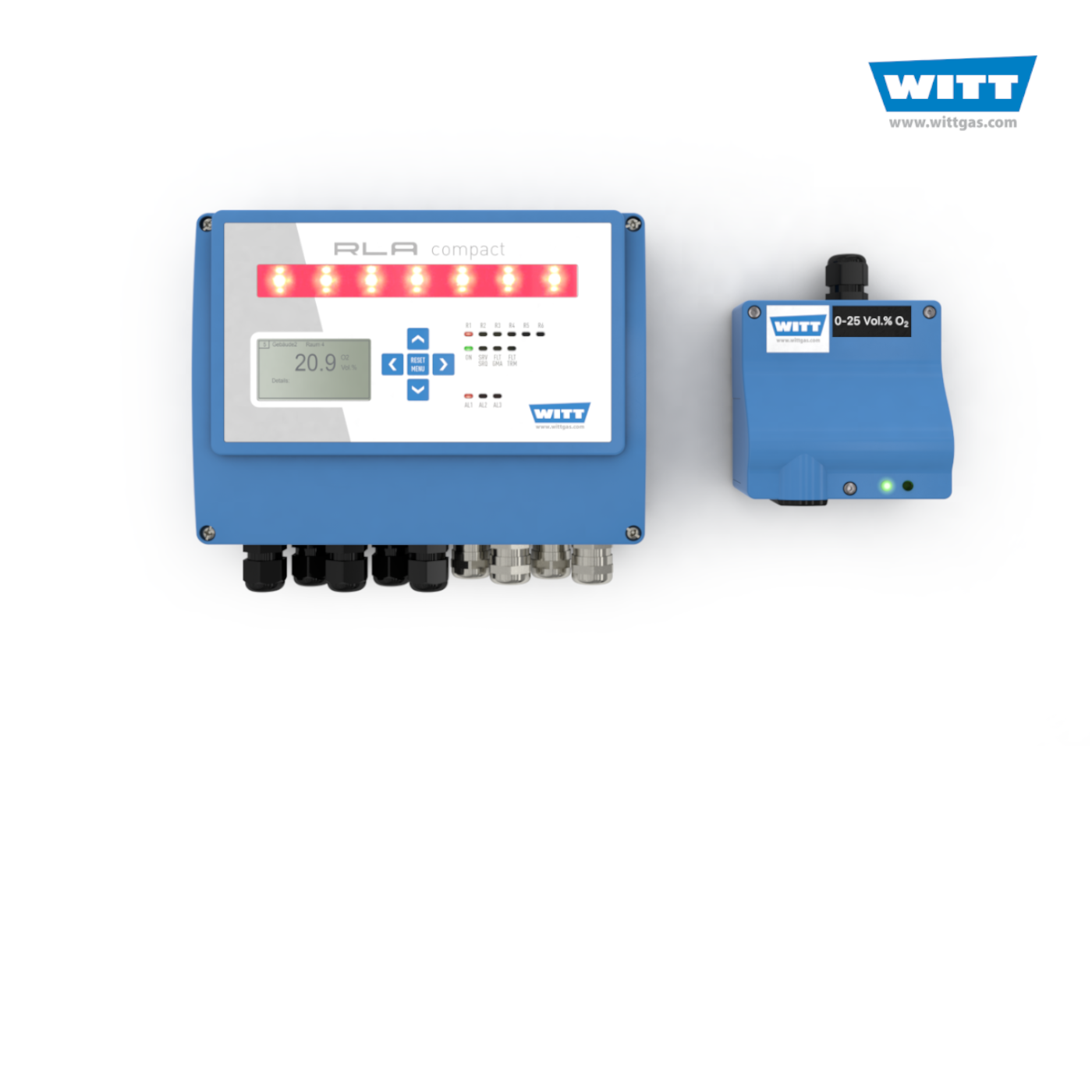

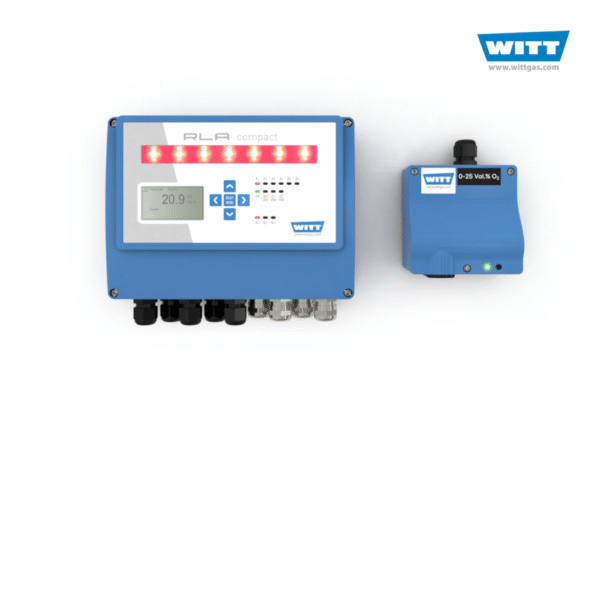

1. Control and Display Unit
2. Transmitter/s
3. Transmitter cable for connecting of Transmitter and Control Unit
