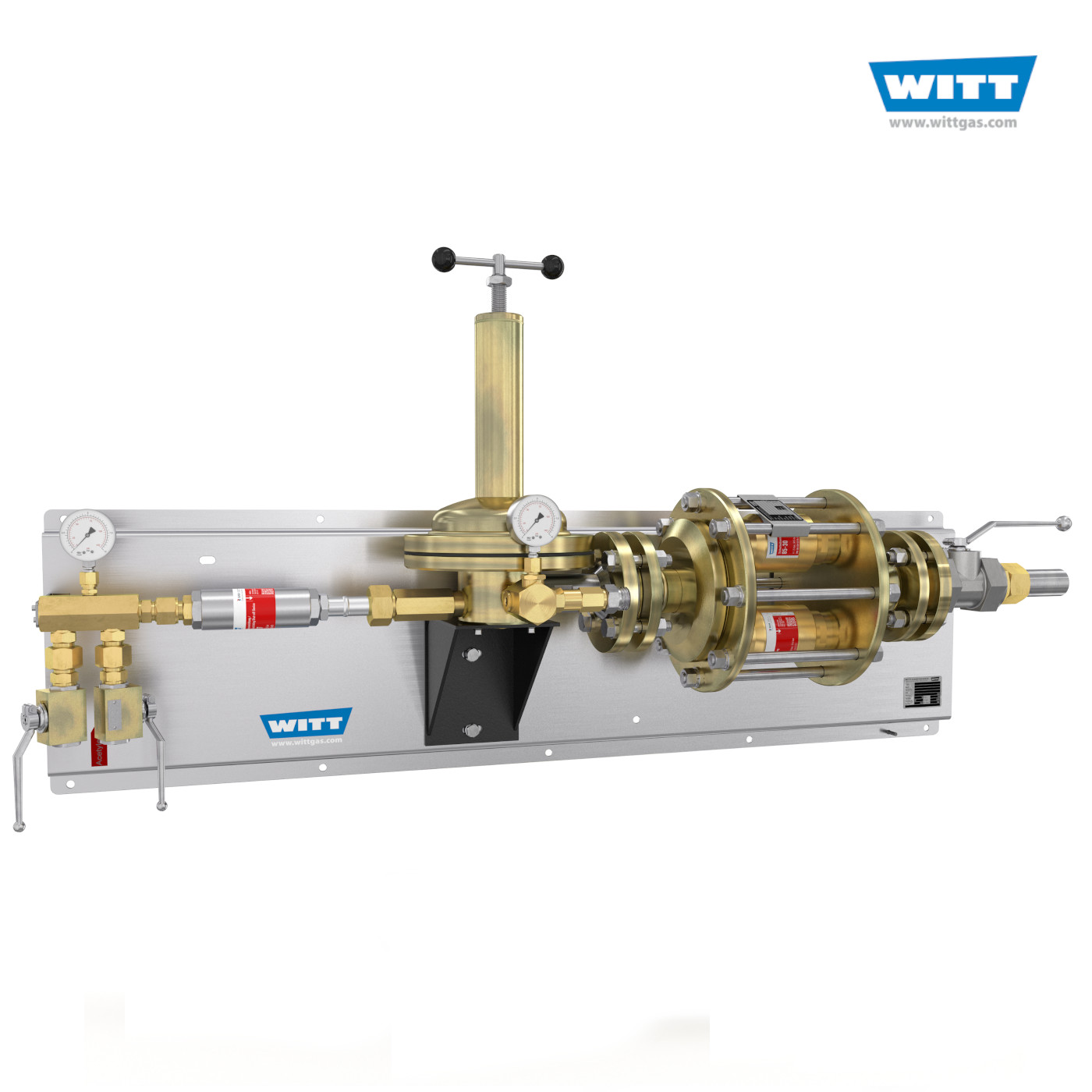

WITT Pressure regulating station 1×1 or manually changeable 2×1 for central gas supplies. Every pressure regulating station 100% tested.

Benefits:

• pressure regulating station complete, mounted and tested
• quick and easy wall mounting
• robust design
• suitable for connection with cylinders or bundles
• pressure regulating station according to EN ISO 14114
• pressure regulator according to EN ISO 7291
• 2x decomposition arrestors FN40 or 4x FN40 respectively with safety device 85-30
• extremely low pressure drop (Δp) provides optimal draining of the manifold or bundle
• independent of inlet pressure and flow capacity extremely stable outlet pressure

Operation / Usage:

• The pressure regulating station automatically ensures continuous gas supply and control of a pipeline, which is connected with pipeline outlets and reduces the risk of accidents. Supplying from single cylinders is no longer necessary.
• Pilot gas is required for ADR regulator

Assembly:

• 1×1 pressure regulating station 150N
• 2×1 pressure regulating station 150N manually changeable

consisting of:
2/2-way-high pressure ball valves 1x or 2x dependant on option
1x Automatic Quick Acting Shut-Off Device according to EN ISO 15615
1x pressure regulator ADR 150 with blow off valve
1x safety group 645 with decomposition arrestor FN40 respectively safety device 85-30 (depending on version)
1x ball valve with flange in outlet

• completely mounted and tested on stainless steel plate

Options:

• flexible hose standards (BAM certified) for connection of pressure regulating station with gas supply (cylinder, gas cylinder manifolds, bundles, …), adapter suitable for bundle connection
• gauge with contacts
• manifold for connection of cylinder bundles with pressure regulating station

Approvals
Company certified to ISO 9001
