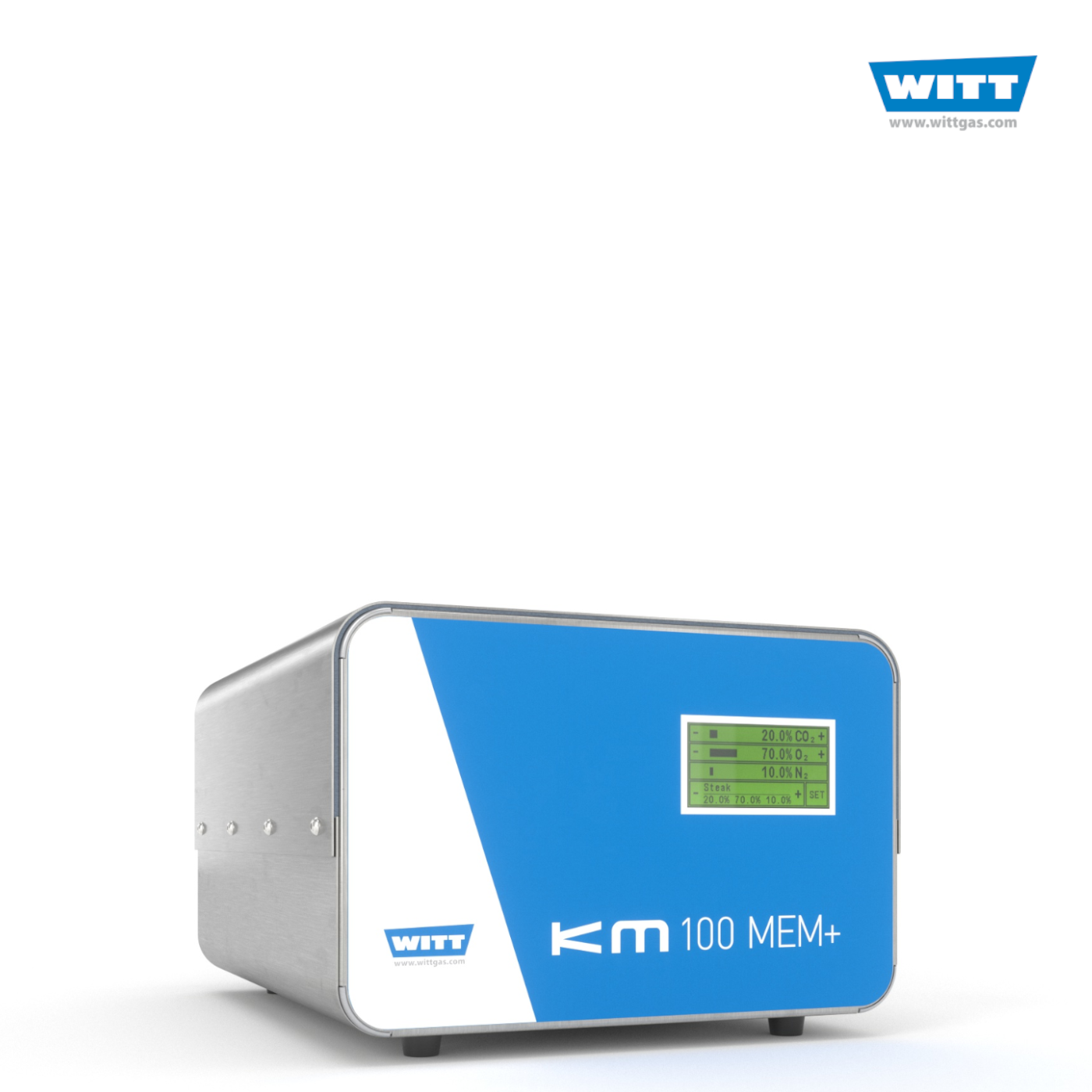

Gas Mixer KM100-2MEM+

Gas Mixer KM100-2MEM+

Electronic Gas mixer for 2 gases with a motor-driven mixing valve, e.g. for Modified Atmosphere Packaging

Features:

  • quality gas mixer from the world market leader
  • control by serial interface (e.g. PC, Pocket-PC, SPS, machines) incl. remote control
  • also for discontinuous gas withdrawal
  • adjustable mixing valve
  • operation with mixed gas receiver
  • only one control unit for an infinite number of mixing systems
  • the constant, accurate mixture when large or very small volumes are needed

Product of WITT

Download Datasheet

Loading...

Description

Benefits:

  • fast mixing adjustment < 3 sec. by simultaneous adjustment of mixing valves
  • control by PC, PDA, PLC of the machine, etc.

    – remote control
– easy documentation of parameter settings to meet quality management requirements
– only one control unit for an infinite number of mixing systems
– fixed gas mixtures according to product type possible
– monitoring of parameters and valve positions possible at any time
– the current position is readable on display

Note: Features depend on the type of control system used.

  • mixture settings in steps of 0.1%
  • high mixing accuracy
  • simple to operate via touch-screen (after activation)
  • gas mixers can be linked to PC or PLC (e.g. CAN-Bus option)
  • due to the real zero flow, it is possible at mixers with 3 gas mixtures to mix 2 gas mixtures
  • independent of pressure fluctuations in the gas supply
  • independent of packaging speeds and sizes of packages (packaging industry)
  • integrated monitoring of gas supply for higher process safety. Low pressures set off an alarm and switch a potential-free contact (e.g. to shut down machinery and avoid quality problems)
  • perfect hygiene due to splash-proof housing with smooth, easy-to-clean surfaces of brushed stainless steel
  • inlet pressure failures are displayed

Options:

  • continual monitoring and documentation of gas mixtures by an optional gas analyser

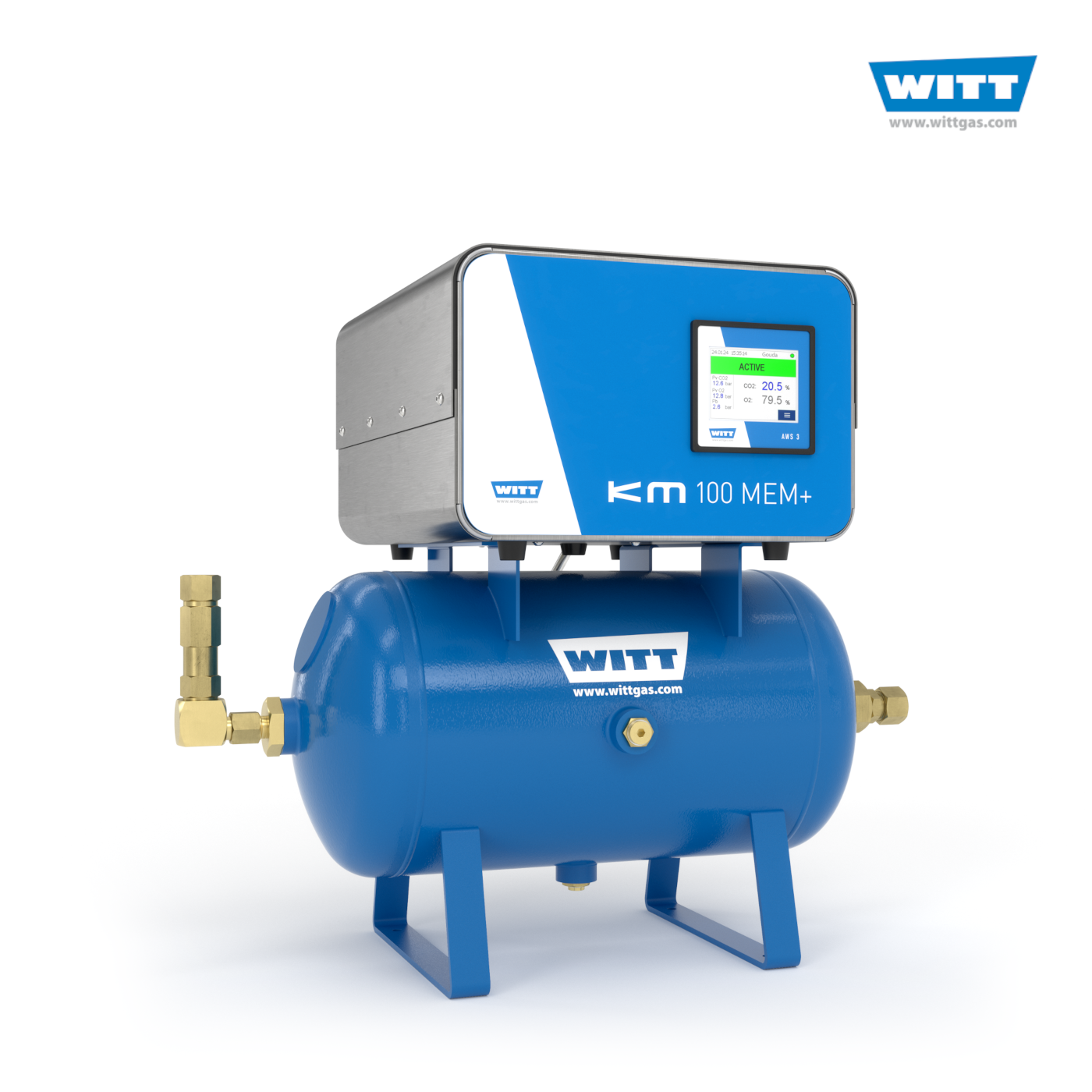

  • pre-assembly of the mixer on receiver for easier on-site installation
  • audible alarm
  • visual alarm (flashlight)

Attention: These mixers require a receiver with sufficient volume (according to output from 10 to 100 Litre)

Our gas mixers are always aligned to the needs of the customer. Please tell us your requirements, we will realise them.
