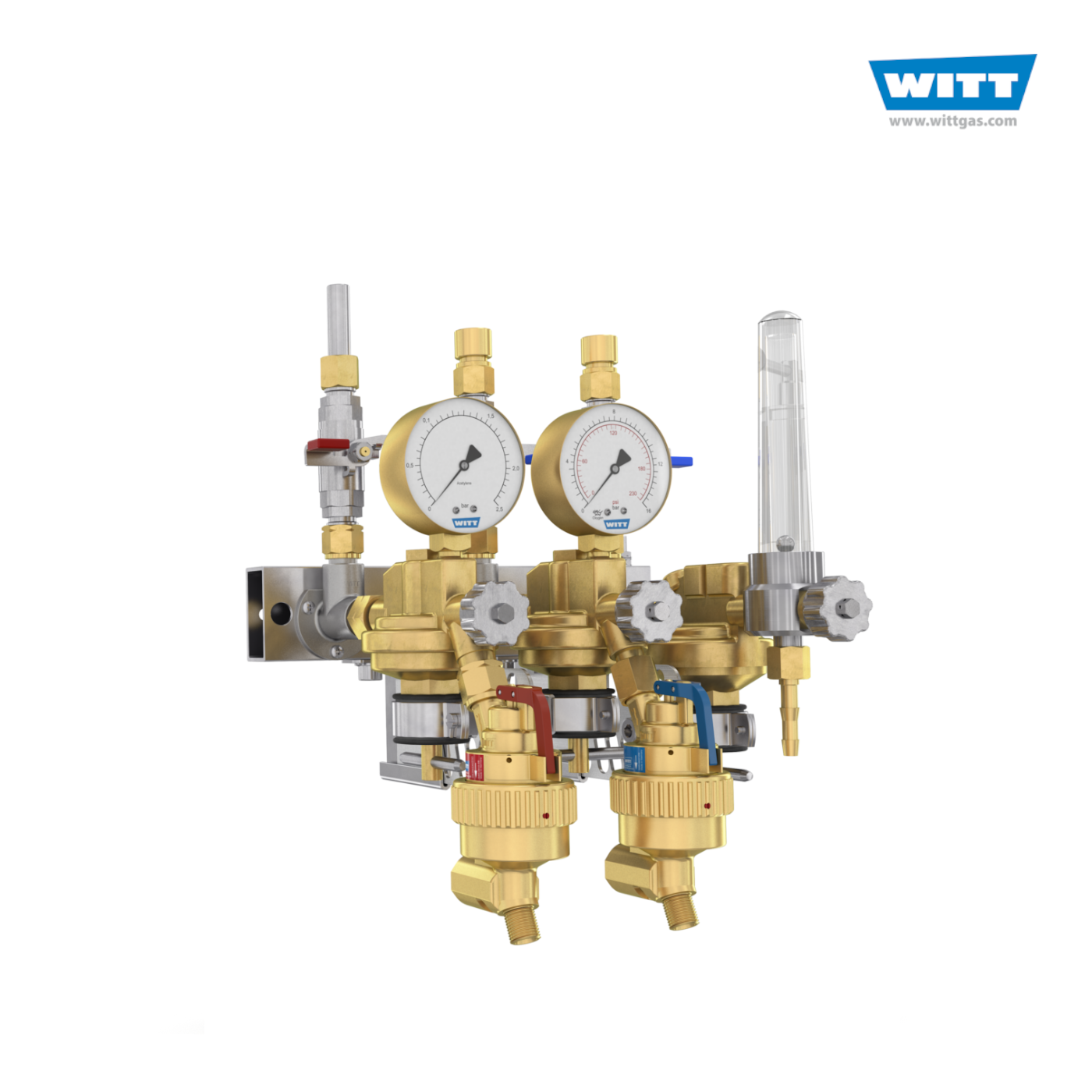

Outlet Point 603

Outlet Point 603

Outlet point for connection to a central gas supply system, modularly extendable

  • for acetylene, fuel gas, oxygen and shielding gas
  • compact and easy to handle
  • anti-swivelling mount of the pressure regulator and flashback arrestor
  • nickel-plated tube with nickel-plated wall screen
  • infinitely modularly extendable

Product of WITT

Download Datasheet

Loading...

Description

Outlet points easy to use for withdrawal of technical gases. To mount on the wall for connection with a central gas supply system (ring line). The compact design is modularly expansible and offers a variety of possible combinations.

Benefits:

  • the combination of gas paths and design features is customizable
  • inlet with fittings (soldering end and/or welding socket) and outlet with nozzle or male thread (option hose coupling)
  • ball valves in inlets signals clearly position OPEN / CLOSED respectively gas flow/gas stop
  • quick and easy wall mounting
  • compact design
  • completely mounted and tested
  • nearly unlimited number of gas paths
  • nickel-plated tube with nickel-plated wall screen, for withdrawal of acetylene, fuel gas, oxygen and shielding gas
  • anti-swivelling fixing of pressure regulator/safety device

Options:

  • pressure regulator with a pressure gauge or flow meter
  • model with safety devices, according to EN 730 / ISO 5175-1 against dangerous reverse gas flow and flashbacks
  • hose coupling SK100 according to DIN EN 561 / ISO 7289
  • WITTFIX-Pipe Couplers

Operation / Usage:
Outlet points are connected to the central gas supply system by ring or stub lines and adjusted to the required local flow and specific operating pressures.

Indication:
603-1 for one gas path
603-2 for two gas paths
603-3 for tree gas paths
603-X for more than tree gas paths

Approvals
Company certified to ISO 9001
Cleaned for Oxygen Service according to EIGA IGC Doc 13/12/E: Oxygen Pipeline and Piping Systems

Other models, options and accessories available on request.
